COARSE PANEL FILTERS
PLEATED PANEL FILTERS
Z-TYPE PET FILTER
TECHNICAL SPECIFICATIONS
- Filtering Material: Polyester (PET)
- Frame Material: Galvanized Sheet Metal
- Gasket: Optional (Polyurethane / EPDM)
- Grille: Metal Mesh
- Classification (EN779:2012): G3 – G4
- Classification (ISO 16890): ePMcoarse
- Final Pressure Drop: 250 Pa
- Maximum Temperature: 80 °C
- Maximum Humidity: 90%
- Nominal Retrieval Velocity: 2.70 m/s

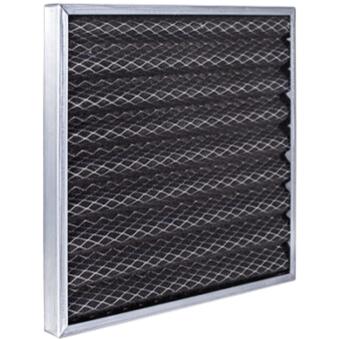

Z-TYPE POL FILTER
TECHNICAL SPECIFICATIONS
- Filtering Material:Â Polyurethane (POL)
- Frame Material: Galvanized Sheet Metal
- Gasket: Optional (Polyurethane / EPDM)
- Grille: Metal Mesh
- Classification (EN779:2012): G3 – G4
- Classification (ISO 16890): ePMcoarse
- Final Pressure Drop: 250 Pa
- Maximum Temperature: 80 °C
- Maximum Humidity: 90%
- Nominal Retrieval Velocity: 2.70 m/s
Z-TYPE CARDBOARD FILTER
TECHNICAL SPECIFICATIONS
- Filtering Material: Single-sided mesh laminated PET
- Frame Material: Cardboard
- Gasket: Optional (Polyurethane / EPDM)
- Classification (EN779:2012): G3 – G4
- Classification (ISO 16890): ePMcoarse
- Final Pressure Drop: 250 Pa
- Maximum Temperature: 80 °C
- Maximum Humidity: 90%
- Nominal Retrieval Velocity: 2.70 m/s
FLAT PANEL FILTERS
FLAT TYPE PANEL FILTER
TECHNICAL SPECIFICATIONS
- Filtering Material: Polyester (PET) / Polyurethane (POL)
- Frame Material: Galvanized Steel
- Gasket: Optional (Polyurethane / EPDM)
- Classification (EN779:2012): G3 – G4
- Classification (ISO 16890): ePMcoarse
- Final Pressure Drop: 250 Pa
- Maximum Temperature: 75 °C
- Maximum Humidity: 90%
- Nominal Retrieval Velocity: 2.70 m/s
