MDF CASE HEPA FILTERS

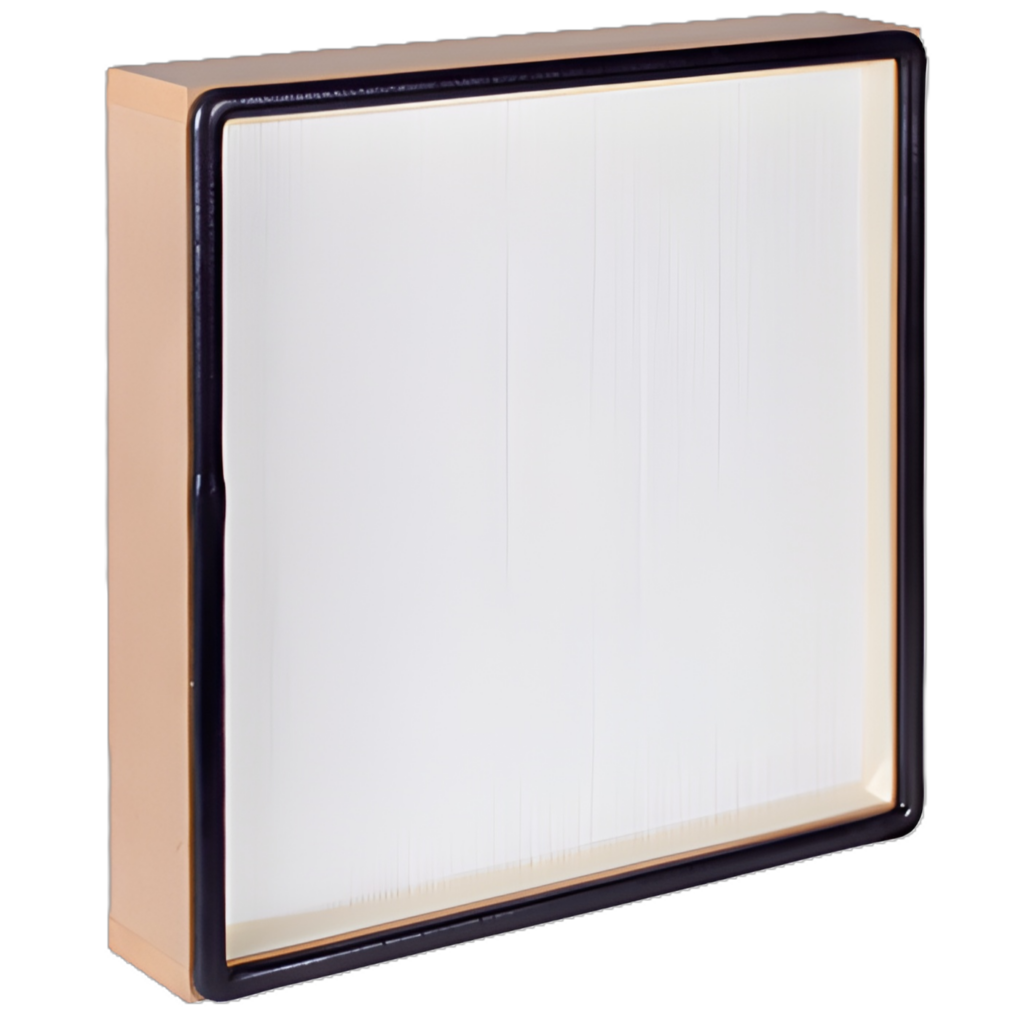

78 mm MDF CASE HEPA FILTER
TECHNICAL SPECIFICATIONS
- Filtering Material: Minipleat Micro Glass Fiber
- Frame Material: MDF
- Classification (EN1822): E1- U17
- Gasket: Cont. Round PU / Flat Epdm
- Separator: Hotmelt
- Sealant: 2K Polyurethane
- Final Pressure Drop: 600 Pa
- Maximum Temperature: 80 °C
- Maximum Humidity: 90%
- Nominal Surface Velocity: 0.45 m/s

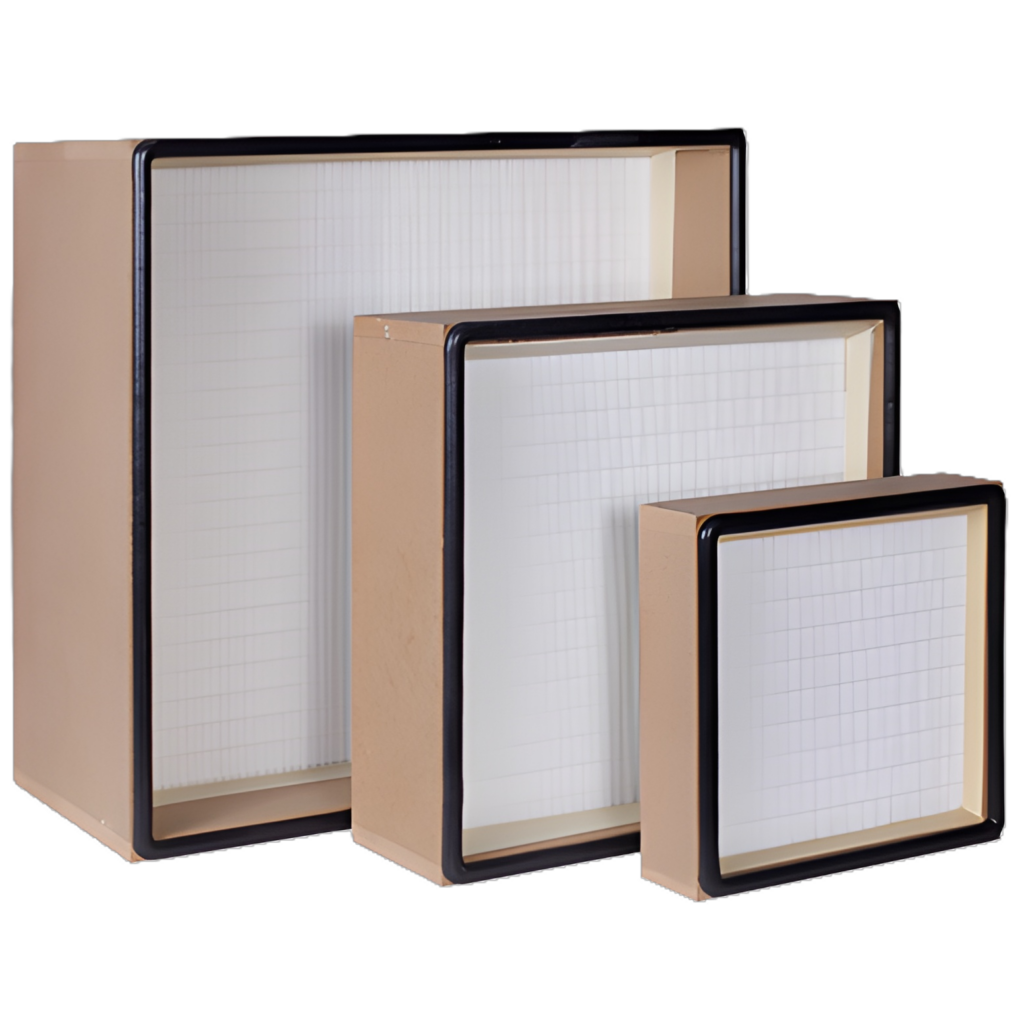

149 mm MDF CASE HEPA FILTER
TECHNICAL SPECIFICATIONS
- Filtering Material: Minipleat Micro Glass Fiber
- Frame Material: MDF
- Classification (EN1822): E1- U17
- Gasket: Cont. Round PU / Flat Epdm
- Separator: Hotmelt
- Sealant: 2K Polyurethane
- Final Pressure Drop: 600 Pa
- Maximum Temperature: 80 °C
- Maximum Humidity: 90%
ALUMINUM CASE HEPA FILTERS

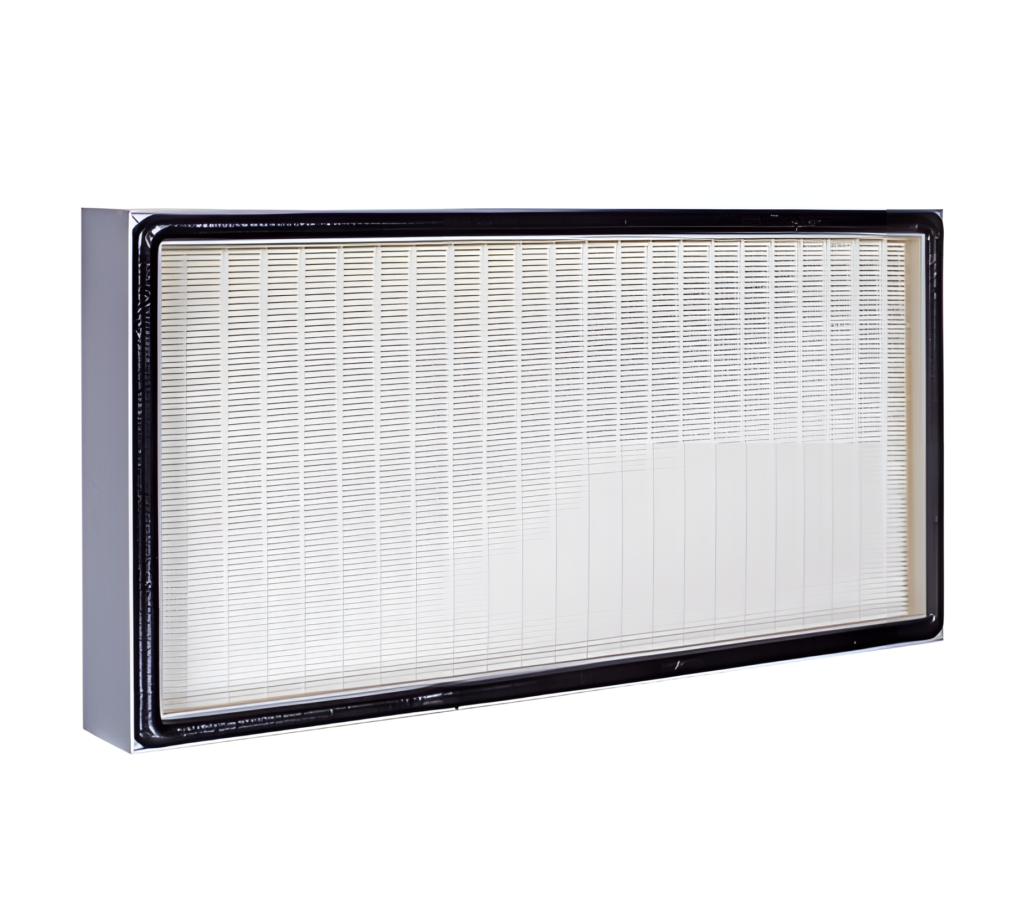

69 mm ALUMINUM CASE HEPA FILTER
TECHNICAL SPECIFICATIONS
- Filtering Material: Mini Crimped Micro Glass Fiber
- Frame Material: Aluminum Steel
- Classification (EN1822): E10- U17
- Gasket: Cont. Round PU / Flat Epdm
- Separator: Hotmelt
- Sealant: 2K Polyurethane
- Final Pressure Drop: 600 Pa
- Maximum Temperature: 80 °C
- Maximum Humidity: 90%
- Nominal Retrieval Velocity: 0.45 m/s

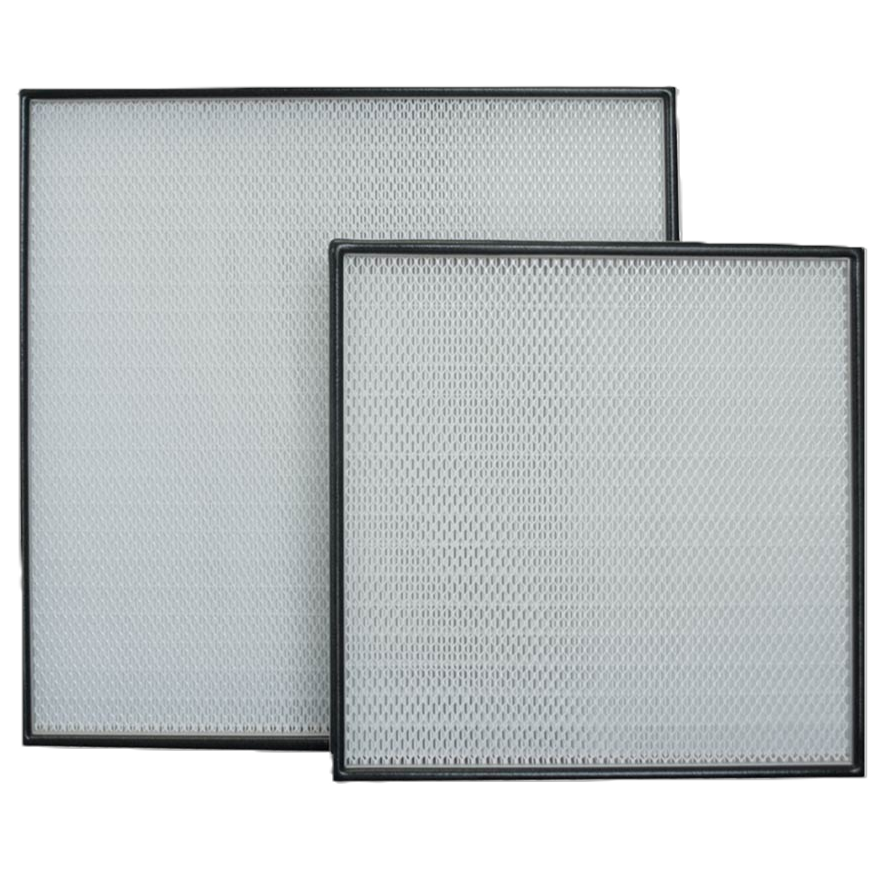

78 mm ALUMINUM CASE HEPA FILTER
TECHNICAL SPECIFICATIONS
- Filtering Material: Mini Crimped Micro Glass Fiber
- Frame Material: Aluminum Steel
- Classification (EN1822): E10- U17
- Gasket: Cont. Round PU / Flat Epdm
- Separator: Hotmelt
- Sealant: 2K Polyurethane
- Final Pressure Drop: 600 Pa
- Maximum Temperature: 80 °C
- Maximum Humidity: 90%
- Nominal Retrieval Velocity: 0.45 m/s

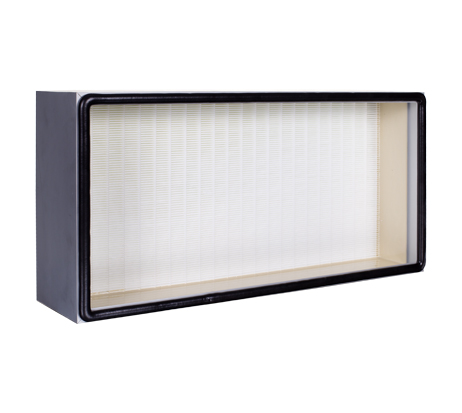

149 mm ALUMINUM CASE HEPA FILTER
TECHNICAL SPECIFICATIONS
- Filtering Material: Mini Crimped Micro Glass Fiber
- Frame Material: Aluminum Steel
- Classification (EN1822): E10- U17
- Gasket: Cont. Round PU / Flat Epdm
- Separator: Hotmelt
- Sealant: 2K Polyurethane
- Final Pressure Drop: 600 Pa
- Maximum Temperature: 80 °C
- Maximum Humidity: 90%
- Nominal Retrieval Velocity: 0.45 m/s

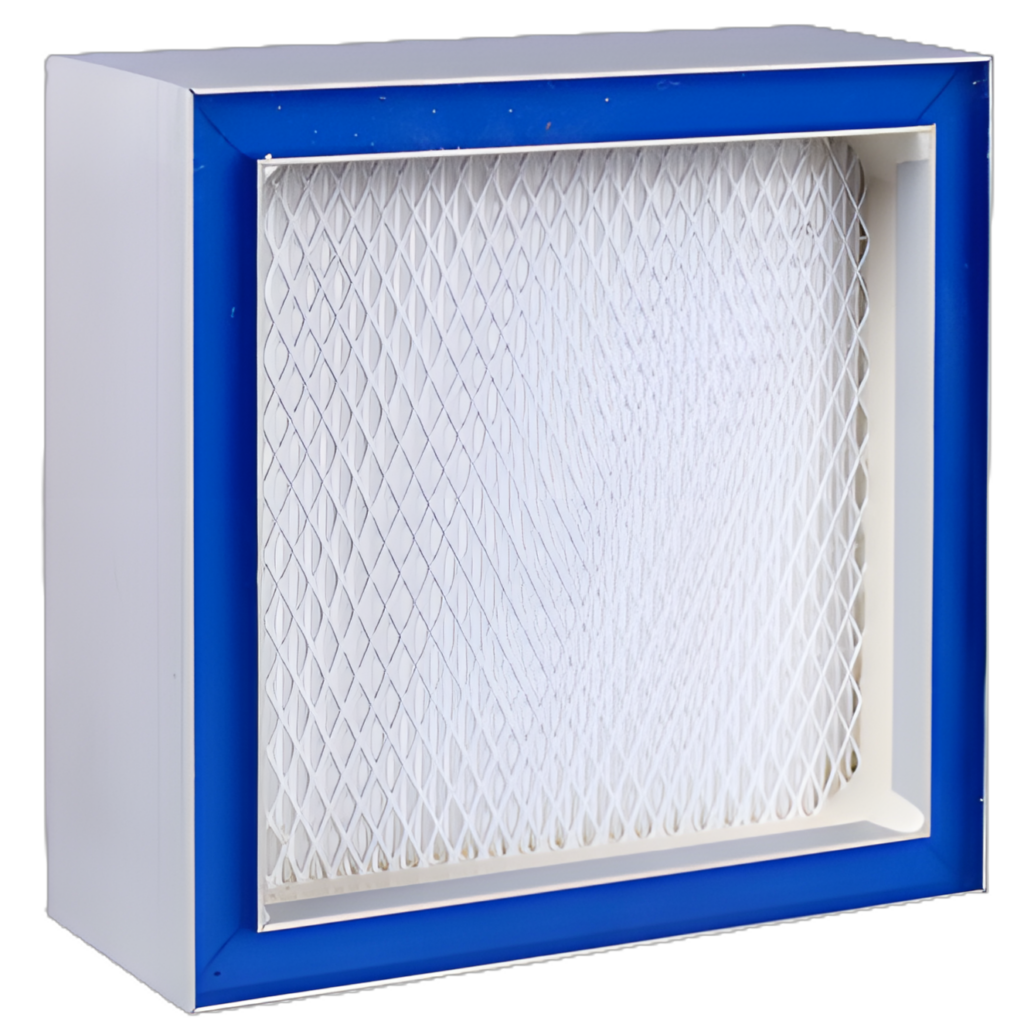

80 mm ALUMINUM CASE GEL SEAL HEPA FILTER
TECHNICAL SPECIFICATIONS
- Filtering Material: Mini Crimped Micro Glass Fiber
- Frame Material: Aluminum Steel
- Classification (EN1822): E10- U17
- Gasket: Gel Seal
- Separator: Hotmelt
- Sealant: 2K Polyurethane
- Final Pressure Drop: 600 Pa
- Maximum Temperature: 80 °C
- Maximum Humidity: 90%
